产品介绍

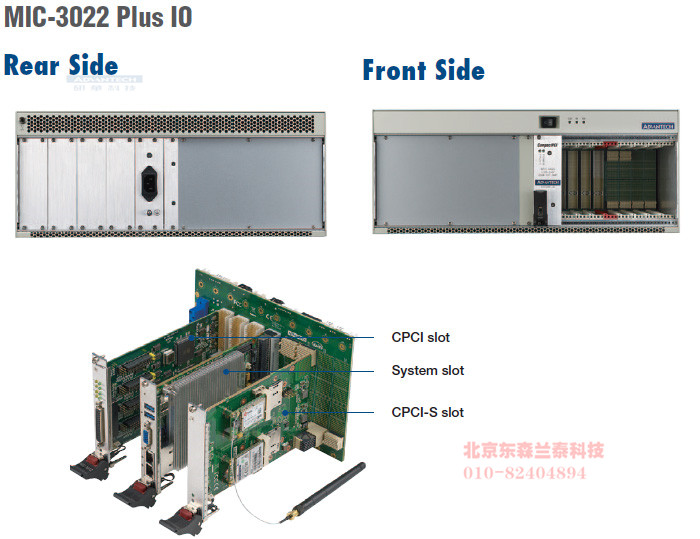

The MIC-3022 is a 4U enclosure designed to host up to 8 slots 3U Eurocard boards. It is assembled by hybrid backplane, with three CompactPCI® peripheral slots and four CompactPCI® Serial slots, connected via a 32bit 33MHz / 66MHz PCI bus and serial bus. Being a hybrid system, it offers an uncomplicated and cost effective migration solution from parallel 3U CompactPCI® to serial CompactPCI® via the CompactPCI PlusIO standard instead of a bridge or an active logic. To save peripheral slot, there is two SATA connectors reserved on hybrid backplane by cable connection for storage extension.

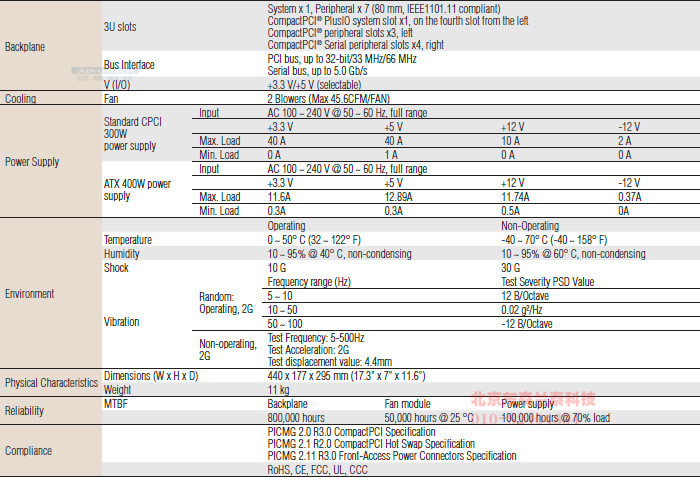

规格
订货信息
| Recommended Configurations | |
| Enclosure | Front I/O Board |
| MIC-3022AE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| MIC-3022CE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| MIC-3022PAE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| MIC-3022PCE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| Ordering Information | |
| Part Number | Description |
| MIC-3022PAE | 3U CPCI Plus IO enclosure with 400W ATX PSU, single system |
| MIC-3022PCE | 3U CPCI Plus IO enclosure with 300W CPCI PSU, single system |
| Optional Accessories | |
| Part Number | Description |
| 96PS-A300WCPC-1 | CPCI 300W Power Supply Unit |
| 1757004391-01 | ATX 400W Power Supply Unit |
尺寸(单位:mm)
