产品介绍
Intel® 第十代 Xeon® /Core™ i CPU 插槽(LGA 1200) 紧凑型无风扇系统

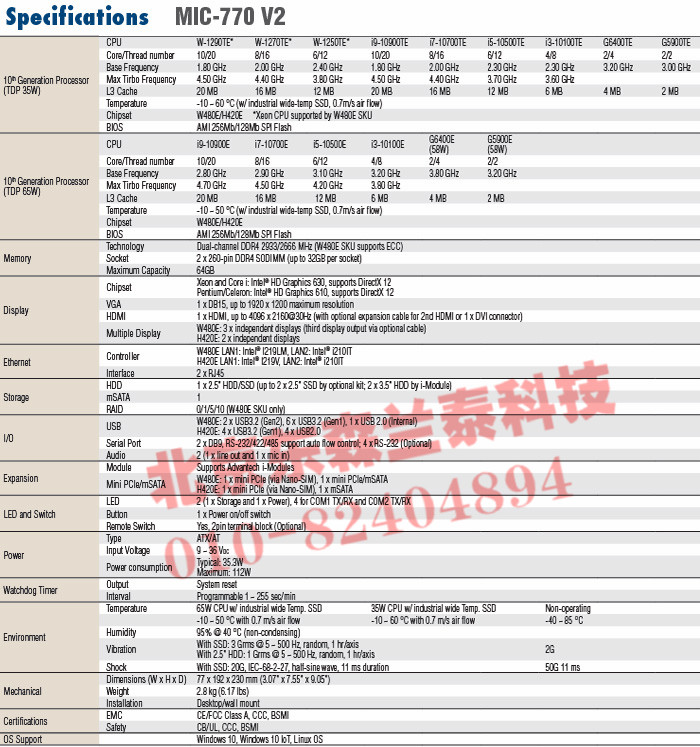

规格
订货信息
| Ordering Information | |||||||||||
| Part Number | VGA | HDMI | 2.5" HDD/SSD | mSATA |
USB3.2 (Gen2) |
USB3.2 (Gen1) |
USB 2.0 | GbE | COM | PCIe | Power |
| MIC-770W-20A1 | 1 | 1 | 1 | 1 | 2 | 6 | 0 | 2 |
2, up to 6 (Optional) |
i-Module (optional) |
9 ~ 36Vdc |
| MIC-770H-20A1 | 1 | 1 | 1 | 1 | 0 | 4 | 4 | 2 |
2, up to 6 (Optional) |
i-Module (optional) |
9 ~ 36Vdc |
| *MIC-770H does not support MIC-75M40 or MIC-75M20-01 | |||||||||||
| Packing List | ||
| Part Number | Description | Quantity |
| MIC-770 V2 | MIC-770 V2 bare system | 1 |
| 2041077030 | MIC-770 V2 startup manual (ENG+TC+SC) | 1 |
| 1652003234 | 4-pin Phoenix power connector | 1 |
| 1960070543T005 | 2 x Mounting bracket | 2 |
| 1700013095 | SATA cable | 1 |
| 1700024372-01 | SATA power cable | 1 |
| 2170000093-01 | CPU thermal grease | 1 |
| 1990019498N000 | RAM thermal pad | 2 |
| Optional i-Modules* | |
| Part Number | Description |
| MIC-75M40-00A2** | 4-slot expansion module (4 x PCIe slots) |
| MIC-75M13-00A2 | 4-slot expansion module (1 x PCIe and 3 x PCI slots) |
| MIC-75M20-00C1 | 2-slot expansion module (2 x PCIe slots) |
| MIC-75M20-01A2** | 2-slot expansion module (2 x PCIe slots) |
| MIC-75M11-00A2 | 2-slot expansion module (1 x PCIe and 1 x PCI slots) |
| MIC-75M10-00A2 | 1-slot expansion module (1 x PCIe) |
| MIC-75S20-00A2 | 2-slot expansion and storage module (2 x PCIe and 2 x 2.5 removable 2.5" storage bay) |
| MIC-75G20-10A2 | GPU Card expansion module (2 x PCIe and 2 x removable 2.5" storage bay) |
| MIC-75G30-00A2 | Dual GPU card expansion module (3x PCIe and 2 x removable 2.5" storage bay) |
| 98R17520301 | 2 x 3.5" HDD kit |
| *Please refer to i-Module datasheet for more detail. | |
| ** W480E SKU only | |
| Embedded OS | |
| Part Number | Description |
| Flex I/O | |
| AIIS-DIO32-00A1E** | AIIS GPIO module (32 bit) |
| PCA-TPM-00B1E | TPM 2.0 module |
| 98R17500001 | MIC DVI FIO |
| 98R17500101 | MIC HDMI/Remote power |
| 98R17500301 | MIC HDMI kit FIO |
| 98R17500401 | MIC Remote power on/off |
| 98R17500601 | MIC COMport kit FIO |
| 98R17500701 | MIC Remote power on/off |
| 98R17500801 | MIC Reset/Remote power on/off/5VDC kit FIO |
| 98R17500901 | MIC GPIO kit FIO |
| 98R17501001 | MIC DP kit FIO |
| Advanced Flex I/O*** | |
| 98910770301 | MIC NVMe + 4 LAN Advanced FIO |
| 98910770401 | MIC NVMe Advanced FIO |
| 98910770501 | MIC 4 PoE Advanced FIO |
| Storage Kit | |
| 98R1752010E | 2nd 2.5" HDD/SSD kit (used in 2-slot i-Module) |
| 98R1752020E | 2 x 2.5" SSD kit (Thickness: 7mm) |
| Mounting Kit | |
| 98R17500210 | MIC Din Rail Mounting kit |
| 98R17500501 | MIC Wall Mounting kit |
| *Please refer to Flex I/O datasheet for more detail. | |
| * AIIS-DIO32 requires a DB37 bracket (P/N: 1960068787N002) | |
| ** W480E SKU only | |

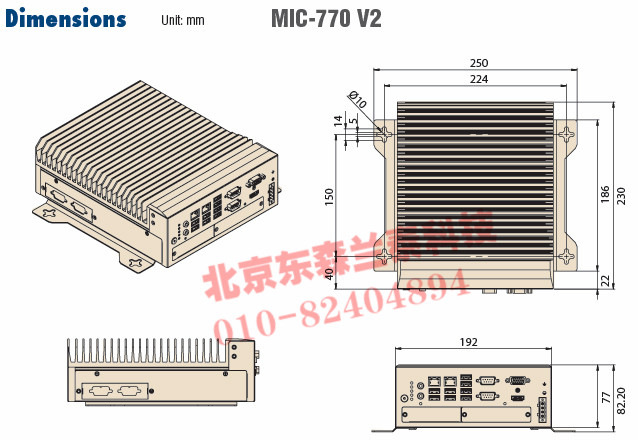

尺寸(单位:mm)
I/O Appearance
