主要特点
Power by Intel Core™ i5-6300U/6200U, Core™ i3-6100U processors
Adopts embedded/non-embedded processors for different application needs
19mm-thin chassis ideal for space-limited installation
Dual HDMI display output, resolution up to 4096 x 2304 UHD
Fanless & Cable-less design for easy maintenance
Highly expandable via internal Mini-PCIe interface (M-SATA compliant)
Supports WISE-PaaS/RMM and Embedded Software APIs
Supports WebAccess/IMM for intuitive signage content managing, remote monitoring and control
|
|
产品介绍
Measuring at 19 mm thick, DS-081 is the world’s slimmest digital signage player powered by 6th Generation Intel® Core™ i3/i5 processors. This thin-and-powerful signage player is equipped with 2x HDMI display which is capable to achieve up to 4096 x 2304 UHD resolution, and delivers a premium visual experience when graphics performance really matters. Windows® Embedded OS, Linux are supported, and Advantech WebAccess/IMM, Web-based content management software, is also free on offer. We’ve designed the DS-081 in the smallest possible form factor, for optimized performance.

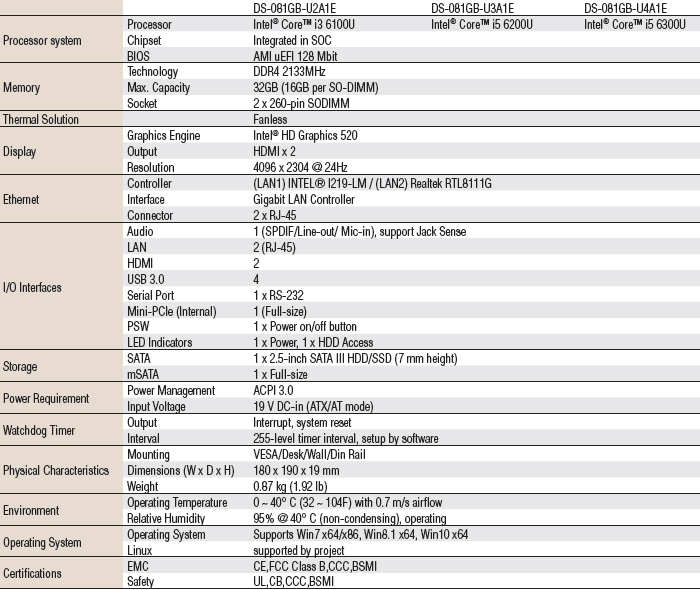

规格
订货信息
|
Part Number |
Description |
|
DS-081GB-U2A1E |
DS-081, Intel® Core™ i3 6100U, barebone |
|
DS-081GB-U3A1E |
DS-081, Intel® Core™ i5 6200U, barebone |
|
DS-081GB-U3A1E |
DS-081, Intel® Core™ i5 6300U, barebone |
|
Packing List |
|
|
Part Number |
Description |
|
- |
1 x DS-081 |
|
- |
1 x 19V Power adapter |
|
- |
1 x China RoHS |
|
- |
2 x Wall Mount Brackets |
|
- |
1 x WebAccess/IMM & WISE-PaaS/RMM installation DVD |
|
- |
1 x Simplified Chinese Manual |
|
- |
1 x Traditional Chinese Manual |
|
- |
4 x Rubber foot and screws |
|
Embedded OS |
|
|
Part Number |
Description |
|
2070015264 |
img WES7E DS-081 64b 1701 ASIA 4 MUI |
|
2070015263 |
img WES7P DS-081 64b 1701 10 MUI |
|
2070015265 |
img W81 IP DS-081 64b 1609 10 MUI |
|
2070015266 |
img W10 16VL DS-081 64b 1701 ENU |
|
Power Cord |
|
|
Part Number |
Description |
|
1700001524 |
3-pin power cord (US) |
|
170203183C |
3-pin power cord (EU) |
|
170203180A |
3-pin power cord (UK) |
|
1700008921 |
3-pin power cord with PSE (Japan) |
|
1700019146 |
3-pin power cord (CCC) |
|
Optional Items |
|
|
Part Number |
Description |
|
AMO-WIFI06E |
Realtek/wifi 802.11bgn/miniPCIe, cable, antenna |
|
AM〇-HSDPA02E |
U-blox/HSDPA 6band/miniPCIe, cable, antenna |
|
AMK-V005E |
VESA mount kit (Generic for ARK-DS/DS) |
|
AMK-V017E |
DS products VESA with Din Rail bracket |

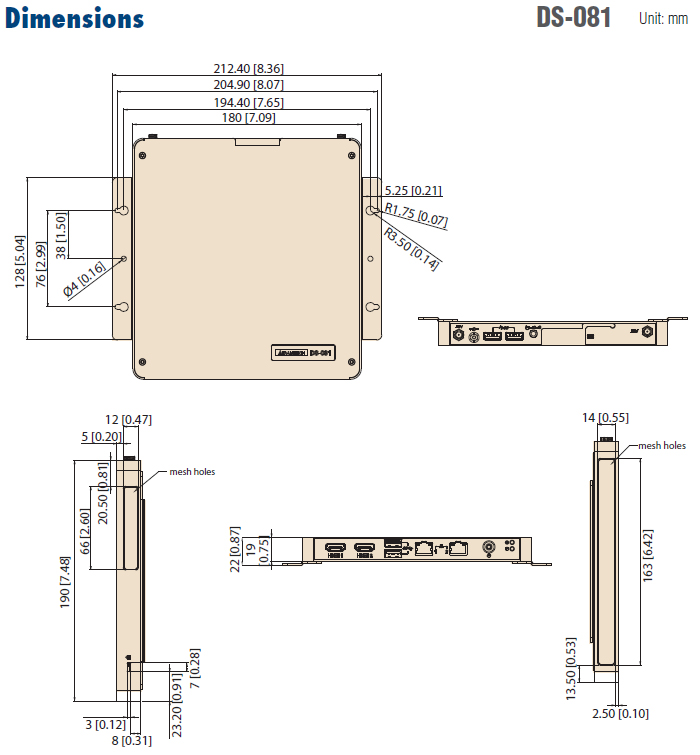

尺寸(单位:mm)

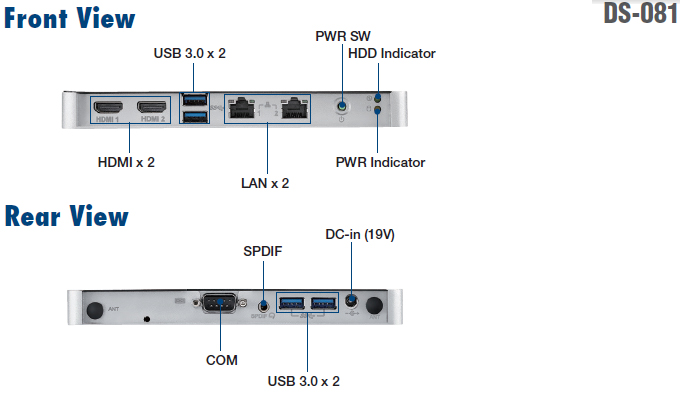

I/O Appearance
|
