产品介绍
Intel Atom N3350 嵌入式无风扇超薄系统整机,研华EPC-S201 嵌入式无风扇系统整机，掌上型尺寸，功耗低至6W，面板携带丰富接口，包括VGA显示，2COM，2USB3.0,1网口，1DIO，支持桌立式，墙贴式及导轨式安装，主要在工业自动化及物联网网关应用。

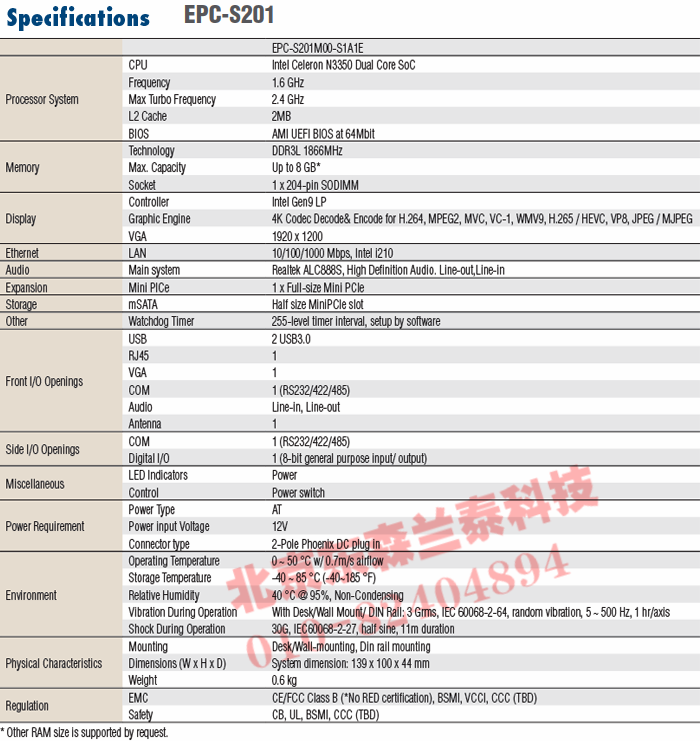

规格
订货信息
| Part Number | CPU | RAM | VGA | Power Input | Operating Temperature |
| EPC-S201M00-S1A1E | Intel Celeron N3350 | up to 8GB DDR3L* | 1 | 12Vdc | 0 ~ 50 °C |
| * RAM size is supported by request. | |||||
| Embedded OS/API | |||||
| OS/API | Part No. | Description | |||
| Win10 | 20706WX6ES0036 | img W10 16EL EPC-S201 64b 1709 ENU | |||
| Software API | - | SUSI API for Windows or Linux | |||
| Liunx | - | Yocto BSP ready | |||
| Ubuntu 20.04 LTS | TBD | ||||
| Optional | |||||
| Part Number | Description | ||||
| 96PSA-A60W12P2-3 | DC power 12V/5A 60W, 0 ~ 40 °C, w/Phoneix Jack type power connector | ||||
| 1702002600-01 | Power cable 3-pin 183 cm, USA type | ||||
| 1700018704 | Power cable 3-pin 180 cm, UK type | ||||
| 1702002605 | Power cable 3-pin 183 cm, Europe type | ||||
| 1700000237-01 | Power cable 3-pin 183 cm, PSE type | ||||
| ESBC-0BRK-WM02 | Wall mount kit | ||||
| ESBC-0BRK-DR01 | DIN Rail kit | ||||
| Packing List | |||||
| Part Number | Description | ||||
| I 1 x EPC-S201 Unit | |||||
| 1 x Startup Manual (Simplified Chinese ) | |||||
尺寸(单位:mm)

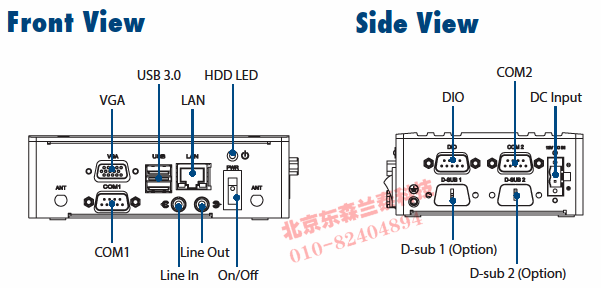

I/O Appearance
