产品介绍
Intel® 6th Generation Core™ i Processor Fanless System; EN 50155 Complied Product for Railway Applications

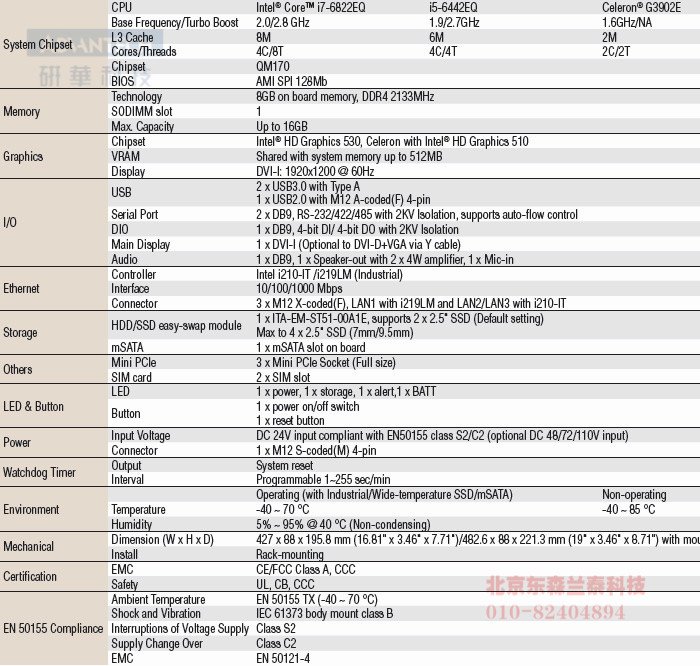

规格
订货信息
| ITA-5231-L7A1E | i7-6822EQ 24VDC |
| ITA-5231-L5A1E | i5-6442EQ 24VDC |
| ITA-5231-L0A1E | G3902E 24VDC |
| ITA-5231-M7A1E | i7-6822EQ 48VDC |
| ITA-5231-S7A1E | i7-6822EQ 72/110VDC |
| ITA-5231-S5A1E | i5-6442EQ 72/110VDC |
| Optional List | |
| Part Number | Description |
| ITA-EM-SR51-00A1E | Easy-swap module, 4 x RS232/422/485 with 2KV Isolation |
| ITA-EM-CN51-00A1E | Easy-swap module, 2 x CAN ports with 2KV Isolation |
| ITA-EM-PE51-00A1E | Note1 2 PoE: Each port max to 7.5W @ 52VDC 1 PoE: Up to 15.4W @ 52VDC |
| ITA-EM-ST51-00A1E | Easy-swap storage tray, support 2 x 2.5" SSD (7mm/9.5mm) |
| ITA-EM-ST51-10A1E | Easy-swap storage tray, support 1 x 2.5" SSD (7mm/9.5mm/15mm) |
| Note1: Only supports EN 50155 T2 class: -40 ~ 55 °C | |
| P/N | Description |
| 1700025295-31 | USB cable: M12 A-code-> USB Type A,10cm |
| 1700026432-21 | LAN cable: M12 x-code-> RJ45,10cm |
| 1700025857-21 | Power cable: M12 S-code-> 2pin Terminal Block,10cm |
| 1700004713 | Y cable: DVI 29P(M) -> DVI 29P(F)+D-SUB 15P(F), 18cm |

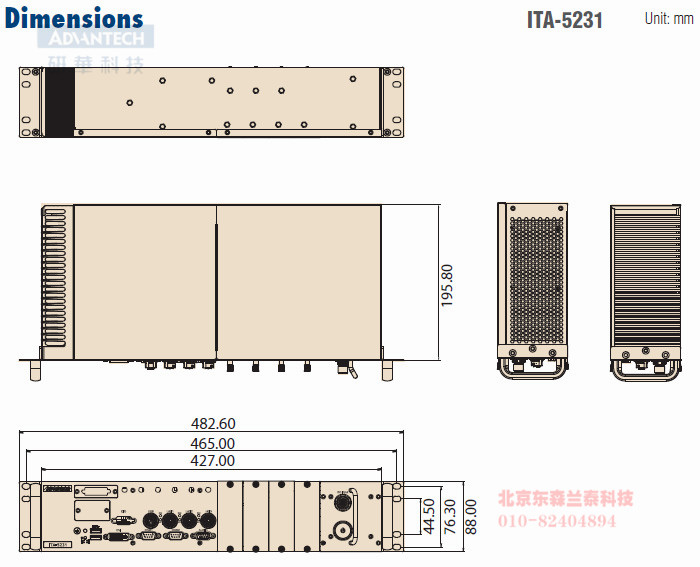

尺寸(单位:mm)

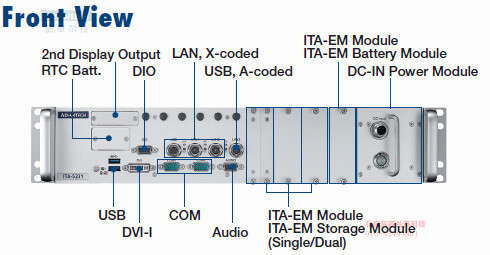

I/O Appearance
