产品介绍
Intel® Quark Micro Din-Rail Controller w/ 2 x LAN, 2 x mPCIe, 2 x COM, 8 x DI/O, 2 x USB, 1 x 1GB microSD card, 1 x SIM
The UNO-1252G is an Intel Quark DIN-rail controller for IoT gateway solution. This controller features dual LAN ports and mPCIe card slots for economic gateway application bridging cloud and brown area. The general purpose input/output ports also success gateway controller directly reading status of sensors and indicating required results. The UNO-1252G is also equipped with Advantech iDoor technology that employes iDoor modules to extend itself to become a wireless gateway. In addition, the UNO-1252G also features eight LED indicators for the status of Power, Battery, SD card, COM ports and three programmable indicators.

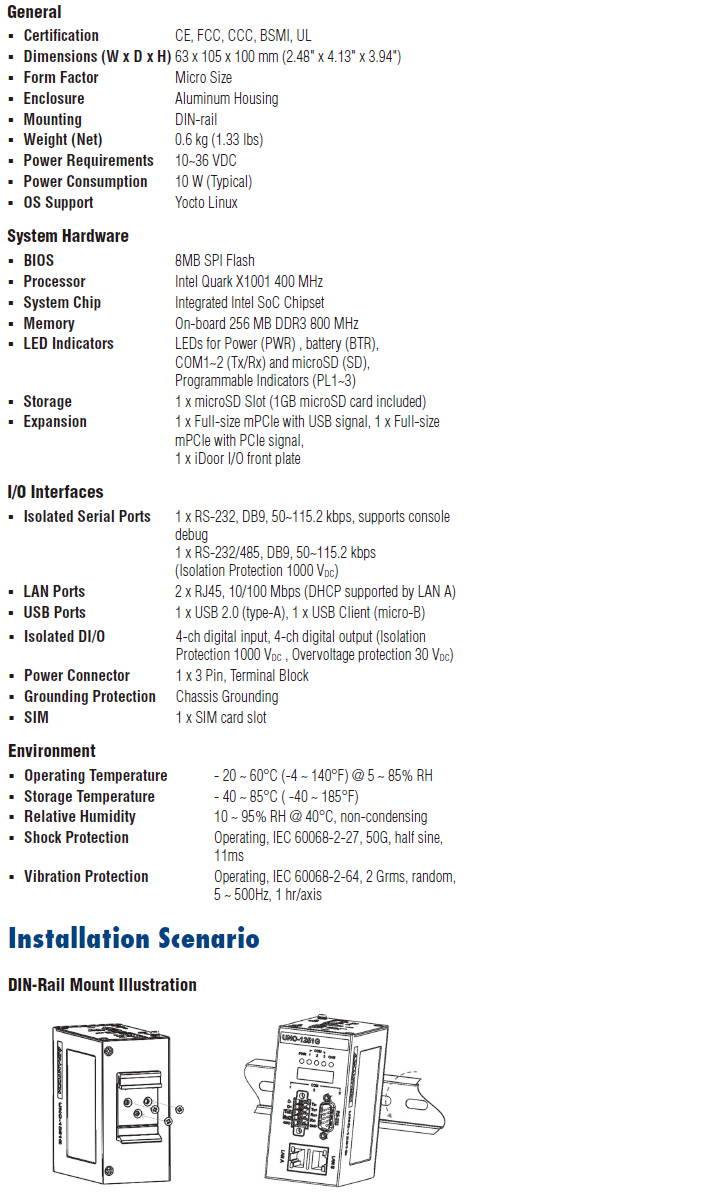

规格
订货信息
| P/N | Description |
| UNO-1252G-Q0AE | Intel Quark X1001 400MHz, 2 x LAN, 2 x mPCIe, 2 x COM, 8 x DI/O, 2 x USB, 1GB microSD |
| Optional Accessories | |
| PWR-247-CE | ADP A/D 100-240V 60W |
| 1702002600 | Power Cable US Plug 1.8 M |
| 1702002605 | Power Cable EU Plug 1.8 M |
| 1702031801 | Power Cable UK Plug 1.8 M |
| 1700000596 | Power Cable China/Australia Plug 1.8 M |
| 96FMMSDI-2G-ET-AT | ATP 2G MICRO SD CARD I-GRD SLC(G) |
| 968EMC0048 | HSPA/EDGE/GPS PCI Express Mini Card |
| 1750006264 | Coaxial cable for antenna |
| 1750005865 | Antenna L=10.9 cm 50 Ohm |
| iDoor Modules | |
| PCM-24S33G-AE | Wide-Temp 3.75G HSPA and GPS, 2-in-1, mPCIe w/ dual SIM Card holder, Antenna, cable |
| *More iDoor modules will be supported by project. | |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

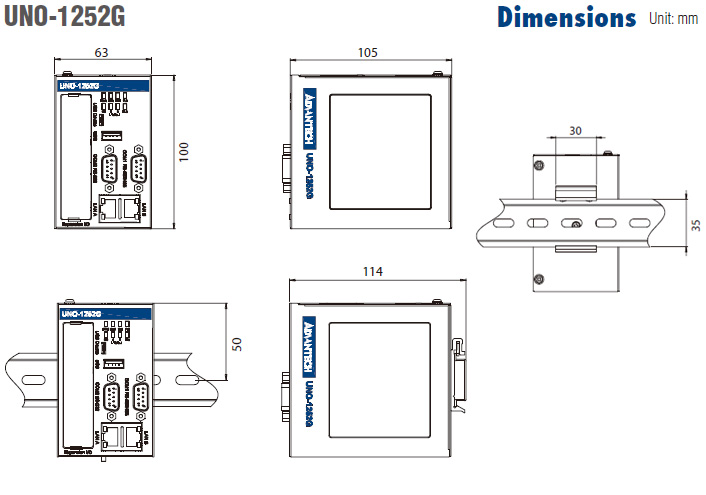

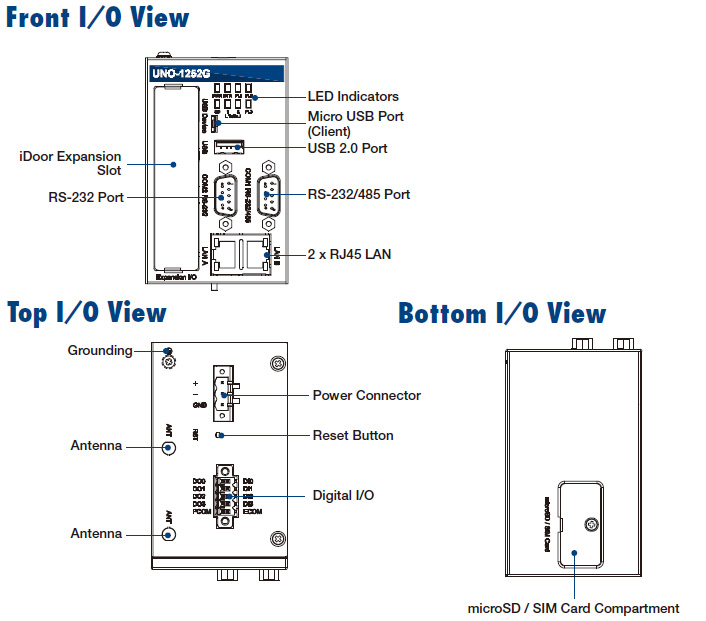

产品图片及框图
