产品介绍
搭载第十代Intel® Core™ i CPU 插槽(LGA 1200) 和250W ATX PSU紧凑型工控机

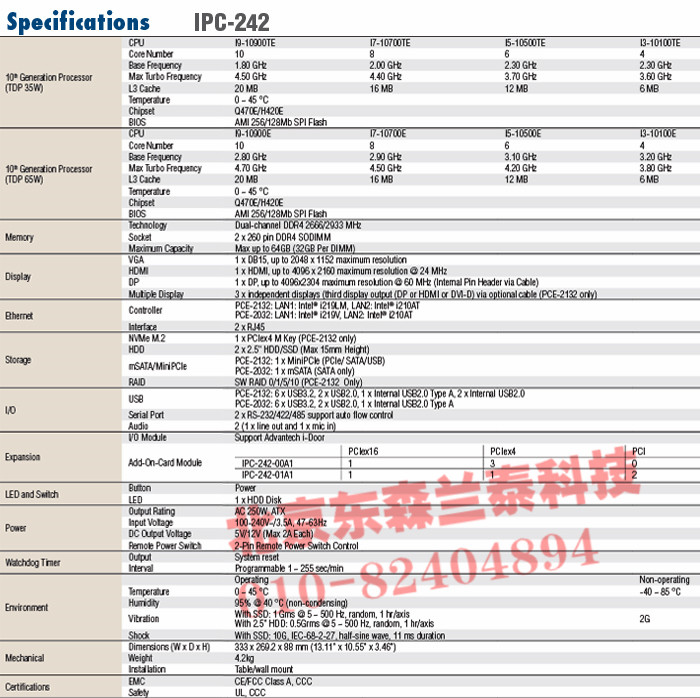

规格
订货信息
| Ordering Information | |||||||
| Part Number | Compatible MB | Chipset | PCIex16 | PCIex4 | PCI | HDD/SSD | AC Power |
| IPC-242-00A1 | PCE-2132-00A1 | Q470E | 1 | 3 | 0 |
2 x 2.5" (1 x internal, 1 x swappable) |
250W ATX |
| IPC-242-01A1 |
PCE-2132-00A1 PCE-2132-00A1 |
Q470E H420E |
1 1 |
1 1 |
2 2 |
||
| IPC-242 Packing List | |||||||
| Item | Description | ||||||
| IPC-242 | Compact Industrial Computer Chassis | ||||||
| 1960070543T007 | Mounting Bracket | ||||||
| 2001024200 | User Manual for IPC-242 | ||||||
| 1652002205 | Remote SW 2 pin Phoenix connector | ||||||
| 1652005685 | 4-Pin Plug in 3.81mm DC output connector | ||||||
| 1700018804 | M CABLE SATA 7P/SATA 7P 90/90 25CM | ||||||
| 1700007352 | SATA POWER CABLE 15P/15CM | ||||||
| 1960070543T007 | MOUNTING BKT x2 | ||||||
| PCE-2032/2132 Packing List | |||||||
| Item | Description | ||||||
| PCE-2032/2132 | 10th Gen Intel® Core™ i CPU (LGA 1200) CPU board | ||||||
| 2041203200 | Startup Manual for PCE-2032/2132 | ||||||
| Optional Accessories | |||||||
| Part Number | Description | ||||||
| 1960053207N001 | IlCPU Cooler LGA1155 S-95W 92.9x92.9x46 4400RPM | ||||||
| 1700008762 | COM3/4 (RS-232) Cable+PCIe Bracket | ||||||
| 1702002600 | Power cord (USA) UL/CSA, 3-pin, 10A, 125V, 1.83 M, 180 D | ||||||
| 1700022940-01 | Power cord PSE, 3-pin, 7A, 125V 3 m, DAC-ST01 | ||||||
| 1702002605 | Power cord (EU) 2-pin, 10/16A, 220V, 1.83 M, 90 D | ||||||
| 1700024858-01 | POE Power Cable 2*2P-4.2/2*2P-4.2 15cm | ||||||
| 1960097668N001 | Vertical Rear Mounting BKT_UP | ||||||
| 1960097669N001 | Vertical Rear Mounting BKT_DOWN | ||||||
| 98R12420000 | HDMI port kit iDoor | ||||||
| 98R12420010 | DVI port kit iDoor | ||||||
| 98R12420020 | Display port kit idoor | ||||||
| PCA-TPM-00B1E | TpM 2.0 module | ||||||
| Note: The PCM series module requires a bracket (P/N : 1960065854N001) that must be ordered separately. | |||||||
| Embedded OS | |||||||
| Item | Description | ||||||
| 20706WX9ES0140 | img W10 19EL PCE-2032 64b 1809 ENU | ||||||
| 20706WX9HS0126 | img W10 19HL PCE-2032 64b 1809 ENU | ||||||
| 20706WX9VS0130 | img W10 19VL PCE-2032 64b 1809 ENU | ||||||

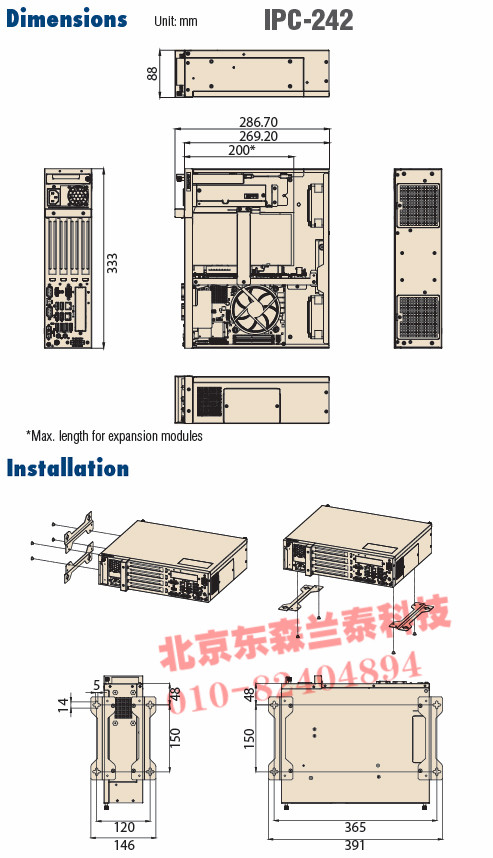

尺寸(单位:mm)

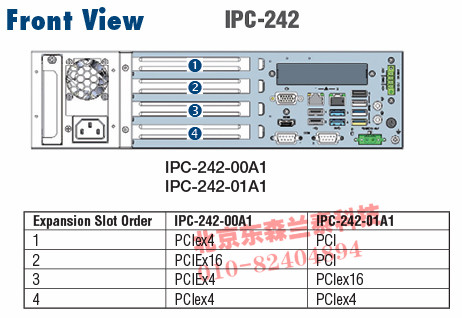

I/O Appearance
