产品介绍
WISE-1020 series is a wireless IoT node with Linear/Dust Network ARM Cortex-M3 Processor, which is a self-forming and self-healing mesh network complaint to 6LoWPAN and IEEE802.15.4e standard. With time synchronization, channel hopping and full mesh network, it offers wire-like reliability and the world’s lowest power WSN solution.

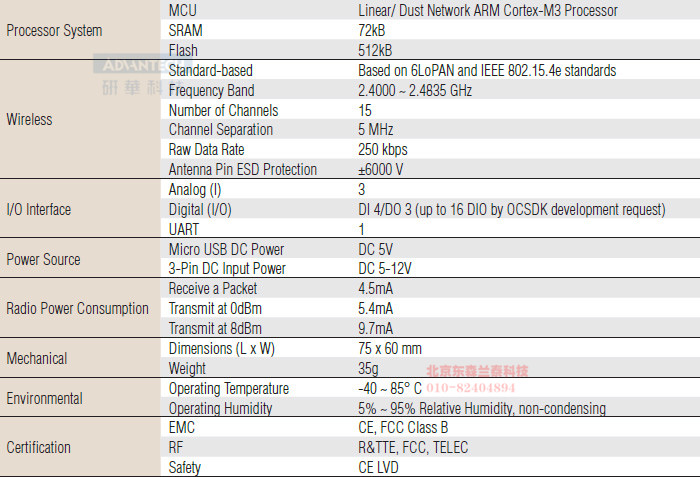

规格
订货信息
| Ordering Information | |
| P/N | Description |
| WISE-1020-0S01E | Wireless IoT Node with SMA connector and antenna |
| WISE-1020-0C01E | Wireless IoT Node with chip antenna |
| Packing List | |
| Part Number | Description |
| 1750000318 | 2dBi 2.4GHz Antenna (WISE-1020-0S01E only) |
| Optional Accessories | |
| Part Number | Description |
| 1700023619-01 | A cable USB-A 4P(M)/micro USB 5P(M) 1m |
| WISE-ED10-00A1E | WISE-1020 Expansion Debug Board |
| Related Models | |
| Model Name | Description |
| WISE-3310-D200L1E | WISE-3310 WPAN GW, 200-Node, Linux OS |
| WISE-3310-D100L1E | WISE-3310 WPAN GW, 100-Node, Linux OS |
I/O
