产品介绍
Dual LGA 2011-R3 Intel® Xeon® E5-2600 v3/v4 ATX Server Board with DDR4, 4 PCIe x16, 6 USB 3.0, SATA3, Dual LAN, IPMI 2.0

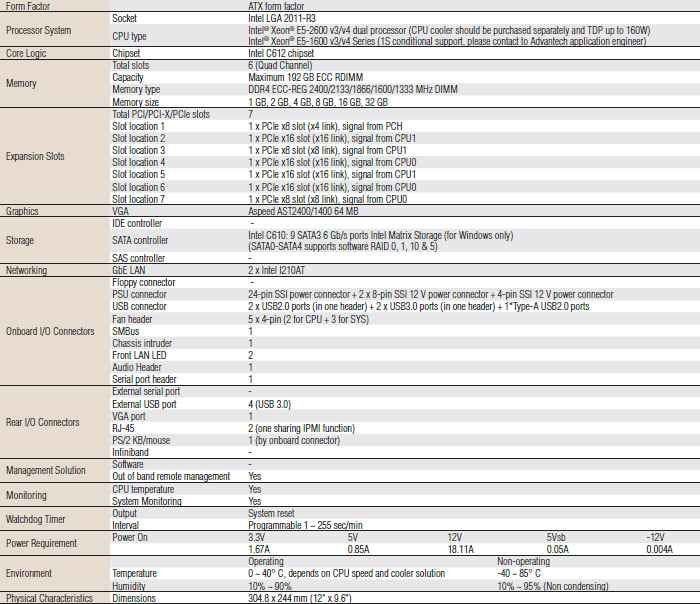

规格
订货信息
| 料号 | 芯片组 | VGA芯片 |
| ASMB-823-00A1E | C612 | AST 1400 |
| ASMB-823I-00A1E | C612 | AST 2400 |
| 包装清单 | ||
| 料号 | 说明 | |
| 2066923101 | 驱动光盘 | |
| 2006923110 | 使用手册 | |
| 1700003194 | SATA 数据线 | |
| 1703150102 | SATA 数据线 | |
| 1700019748 | CPU 电源线(8P) | |
| 1960052312T010 | I/O 挡片 | |
| 可选配件 | ||
| 料号 | 说明 | |
| PCA-AUDIO-HDA1E | HD Audio-card | |
| PCA-TPM-00A1E | TPM Module | |
| 1960057226N001 | LGA2011 square CPU heatsink for 1U chassis (95W) | |
| 1960055362N001 | LGA2011 square CPU cooler for 2U/4U chassis (145W) | |
| 1960065684N001 | LGA2011 square CPU cooler for 4U chassis (160W) | |
| 1700002204 | Dual port USB cable (27 cm) with bracket | |
| 1700008461 | Four port USB cable (30.5 cm) with bracket | |
| 1700020277-01 | Dual port USB 3.0 cable (30 cm) with bracket | |
| 1701090401 | COM port cable with bracket | |
| 19Z0000806T000 | 1U chassis IO shield | |
| 1700019127 | FAN connector extended cable 1*4P-2.54/1*4P-2.54 35cm | |
| PCA-COM232-00A1E | 4 ports RS-232 module connect to LPC connector | |
| PCA-COM485-00A1E | 4 ports RS-422/485 module connect to LPC connector | |
| 968EMLSAP2 | SUSIAccess Pro 3.0 | |
尺寸(单位:mm)

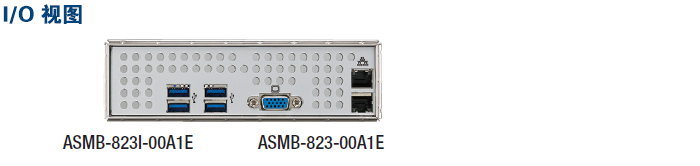

I/O Appearance
