产品介绍
双路 LGA3647-P0 Intel® Xeon® Scalable EATX 服务器主板，带12个 DDR4，5个 PCIe x16 + 1个 PCIe x8 + 1 个PCI, 8个 SATA3, 6 个USB3.0, Dual 10GbE, IPMI

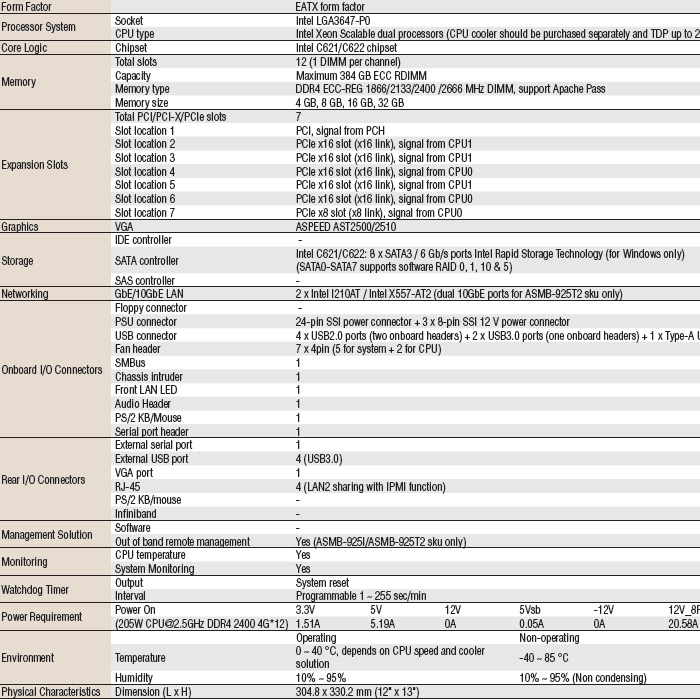

规格
订货信息
| ASMB-925-00A1 | Chipset C621,DDR4 RDIMM |
| ASMB-925I-00A1 | Chipset C621,DDR4 RDIMM |
| ASMB-925T2-00A1 | Chipset C622,DDR4 RDIMM |
| Optional Accessories | |
| Part Number | Description |
| PCA-AUDIO-HDB1E | HD Audio-card |
| PCA-TPM-00A1E | TPM1.2 Module |
| PCA-TPM-00B1E | TPM2.0 Module |
| 1960081603N001 | LGA-3647 narrow CPU cooler for 2U/4U chassis |
| 1960081155N001 | LGA-3647 narrow CPU cooler for 1U chassis |
| 1700028025-01 | Dual port USB cable (45 cm) with bracket |
| 1700028042-01 | Four port USB cable (45 cm) with bracket |
| 1700028024-01 | Dual port USB 3.0 cable (45 cm) with bracket |
| 1701090401 | COM port cable with bracket |
| 1960082347T000 | For 1U chassis IO shield |
尺寸(单位:mm)

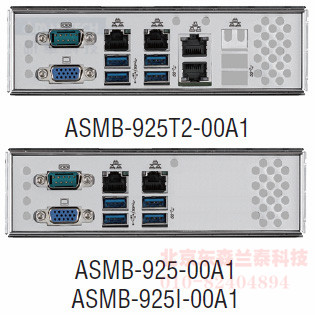

I/O Appearance
