产品介绍
ASR 3000 Series is the 2U 12-bay Storage Appliance with Reliable Data Protection and Backup Solution.2U 12-bay Storage Appliance with Reliable Data Protection and Backup Solution

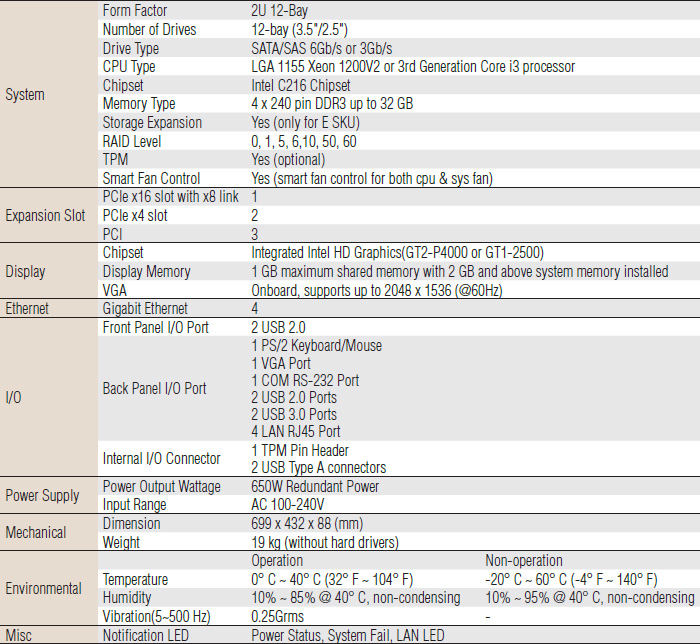

规格
订货信息
| 料号 | 说明 |
| ASR-3272-12A1E | 2U-12 Bay Rackmount Storage Server |
| ASR-3272E-12A1E | 2U-12 Bay Rackmount Storage Server with SAS Expansion Port |
| ASR-3272W-12A1E | 2U-12 Bay Rackmount NAS appliance with |
| pre-insatllaed | Windows Storage Server 2012 R2 |
| 1960047831N001 | Cooler for LGA 1155 processors and TDP up to 95W |
| 注: 必须购买研华的 CPU 冷却器. 其他品牌的冷却器可能会导致不兼容. | |
| System Contents | |
| 料号 | 说明 |
| 26" Slide Rail Kit | 1 |
| 650W 80 PLUS 1+1 redundant power supply | 1 |
| Internal Mini-SAS Cable 600mm, SFF-8087 to SFF-8087 | 1 |
| Optional Accessories | |
| 料号 | 说明 |
| PCA-TPM-00A1E | TPM Module with Infineon TPM 1.2 solution |
| 96RC-IBBU07-LS | LSIIBBU07 BATTERY BACKUP UNIT |
| Compatible Processors | |
| 料号 | 说明 |
| 96MPXE-3.5-8M11T | Xeon 3.5G 8M 1155P 4CORE E3-1275V2 |
| 96MPXE-3.2-8M11T1 | Xeon 3.2G 8M 1155P 4CORE E3-1225V2(G) |
| 96MPI3-3.3-3M11T1 | Core 3.3G 3M 1155P 2CORE I3-3220(G) |

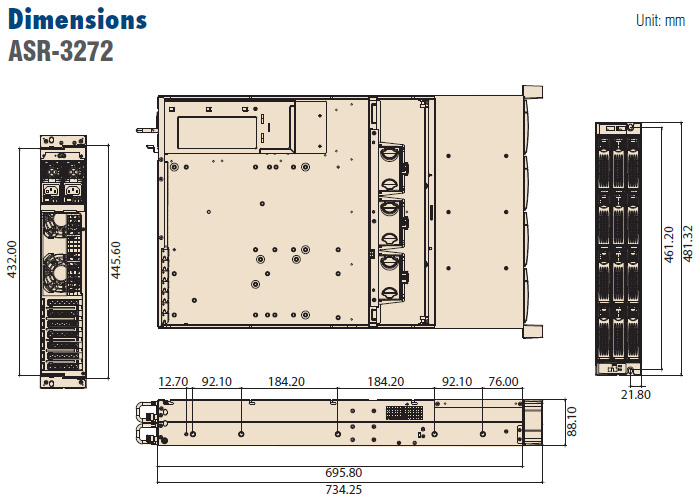

尺寸(单位:mm)

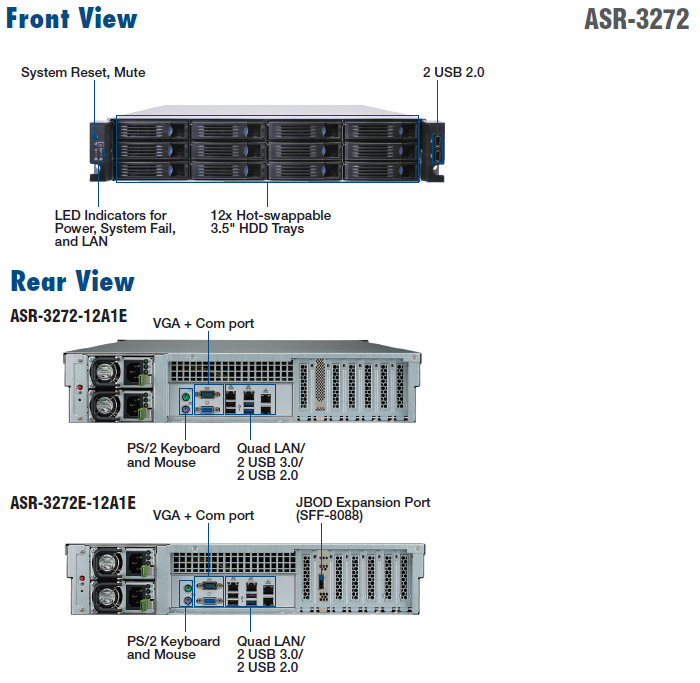

I/O Appearance
