产品介绍
The PCL-734 card offers 32 isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required.
规格
| Isolated Digital Output | |
| Channels | 32 |
| Output Type | Sink (NPN) |
| Isolation Protection | 2,500 VDC |
| Output Voltage | 5 ~ 40 VDC |
| Sink Current | 200 mA max. per channel |
| Opto-Isolator Response | 100 μs |
| General | |
| Bus Type | ISA |
| I/O Connectors | 37-pin D-type female |
| Dimensions (L x H) | 185 x 100 mm (7.3” x 3.9”) |
| Power Consumption | Typical: 5 V @ 330 mA; 12 V @ 80 mA |
| Max.: 5 V @ 500 mA; 12 V @ 105 mA | |
| Operating Temperature | 0 ~ 60°C (32 ~ 140°F) |
| Storage Temperature | -20~70°C(-4~158°F) |
| Storage Humidity | 5 ~ 95% RH, non-condensing (refer to IEC 68-2-3) |
订货信息
| PCL-734 | 32-channel isolated digital ISA output card, user manual and driver CD-ROM (cable not included) |
| PCL-10137-1 | DB37 cable, 1m |
| PCL-10137-2 | DB37 cable, 2m |
| PCL-10137-3 | DB37 cable, 3m |
| ADAM-3937 | DB37 wiring terminal for DIN-rail mounting |

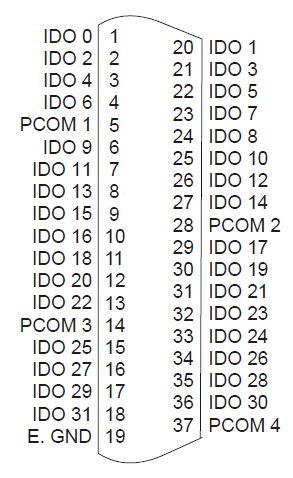

管脚定义
