产品介绍
The PPC-6171C, a panel PC chassis with 17" TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6171C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.

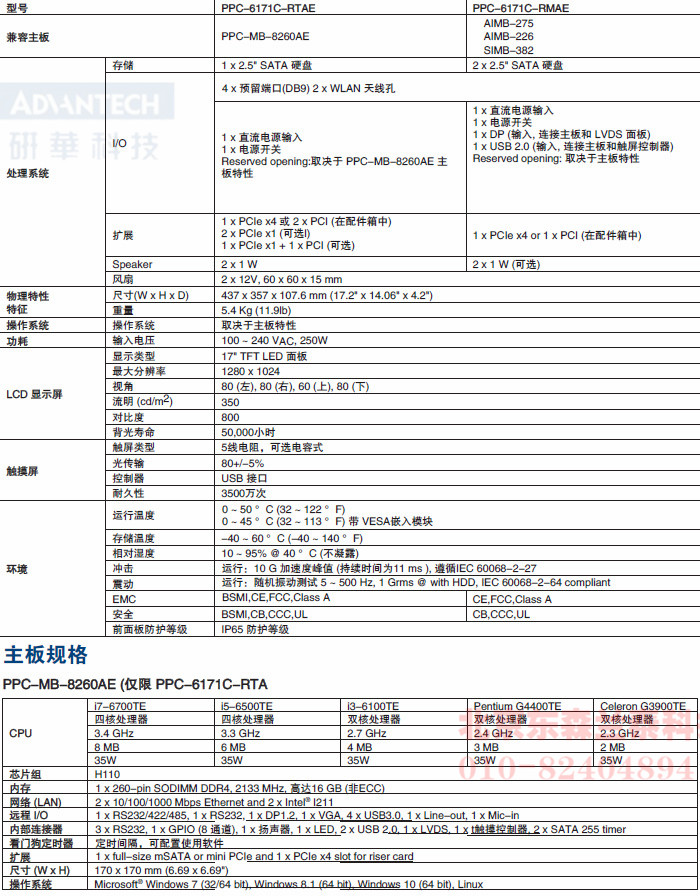

规格
订货信息
| 主板型号 | 主机型号 | 冷却机型号 |
| PPC-MB-8260AE | PPC-6171C-RTAE | 1960053207N001 |
| AIMB-275 | PPC-6171C-RMAE | 1960053207N001 |
| AIMB-226 | PPC-6171C-RMAE | 1960061914N001 |
| 注1. 主板,主机和冷却机应保持一致，确保易于配置。 | ||
| 注2. 主机已配置直流电源和扩展卡 | ||
| 可选配件 | ||
| 型号 | 描述 | |
| PPC-WLAN-B1E | 带天线(40 cm)的Wi-Fi模块 | |
| 1702002605 | 电源线 (EU) 90D 220 ~ 250V/6A, 1.8 M | |
| 1702002600 | 电源线 (US) 180D 125V/10A, 1.83 M | |
| 1702031801 | 电源线 (UK), 1.8 M | |
| 96CB-POWER-B-1.8M1 | 电源线 (China), 1.8 M | |
| PPC-6171C-VESAE | PPC-6171C用VESA模块(操作温度 0 ~ 45 °C) | |
| 9893BE0200E | PPC-61X1C-RTAE 扩展卡 2 x PCIe x1 插槽 | |
| 9893BE03000 | PPC-61X1C-RTAE 扩展卡1x PCIe x1 and 1x PCI 插槽 | |
| PPC-ARM-A03 | ARM VESA Standard (A-CLEVER) | |
| PPC-174T-WL-MTE | 壁挂式组件 | |
| PPC-Stand-A1E | Stand for PPC series | |
| 98R3612000E | Msata/CFast 到 USB 读卡器 | |
| 98R3415010E | Front USB on cabinet module with Cable 100cm | |
尺寸(单位:mm)

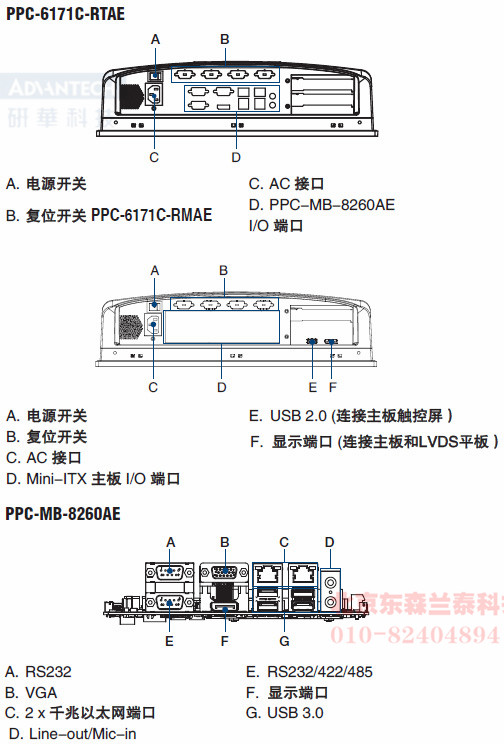

I/O Appearance
