产品介绍
Intel® LGA775 Core™ 2 Duo Mini-ITX带VGA, 4 COM和千兆网口
规格
| Processor System | CPU | Intel Core 2 Duo | Pentium Dual Core | Pentium 4 | Celeron |
| Max. Speed | 1.86 GHz | 1.8 GHz | 3.8 GHz | 2.0 GHz | |
| Front Side Bus | 800 MHz | 800 MHz | 800 MHz | 800 MHz | |
| L2 Cache | 2 MB | 1 MB | 2 MB | 512 K | |
| Chipset | Intel 945GC + ICH7 | ||||
| BIOS | Award 16MB SPI | ||||
| Expansion Slot | PCI | - | |||
| Mini-PCI | - | ||||
| PCIex 16 | 4 GB/s per direction, 1 slot | ||||
| Memory | Technology | Dual Channel DDR2 533/ 667 SDRAM | |||
| Max. Capacity | 2 GB | ||||
| Socket | 200-pin SODIMM x 2 | ||||
| Graphics | Controller | Intel Integrated Graphics Media Accelerator 950 | |||
| VRAM | Shared system memory up to 224 MB | ||||
| Ethernet | Interface | 10/100/1000Base -T | |||
| Controller | GbE LAN1: Realtek RTL8111C | ||||
| Connector | RJ-45 x 1 | ||||
| SATA | Max Data Transfer Rate | 300 MB/s | |||
| Channel | 2 | ||||
| Rear I/O | VGA | 1 | |||
| Ethernet | 1 | ||||
| USB | 4 (USB 2.0 compliant) | ||||
| Audio | MIC-In, Line-Out, Line-in | ||||
| Serial | 2 (1 of RS-232, 1 of RS-232/422/485) | ||||
| Parallel | - | ||||
| PS/2 | 2 (1 x keyboard and 1 x mouse) | ||||
| Internal Connector | USB | 2 (USB 2.0 compliant) | |||
| Serial | 2 (RS-232) | ||||
| IDE | - | ||||
| SATA | 2 | ||||
| Compact | - | ||||
| Parallel | 1 | ||||
| Flash | - | ||||
| IrDA | - | ||||
| DIO | - | ||||
| Watchdog Timer | Output | Interrupt, system reset | |||
| Interval | Programmable 1 ~ 255 sec/ min | ||||
| Power Requirement | Typical | 5 V | 3.3 V | 12 V | 5 Vsb |
| 4.31 A | 0.96 A | 9.5 A | 0.56 A | ||
| Environment | Operating | ||||
| Temperature | 0 ~ 60° C (32 ~ 140° F) | ||||
| Physical Characteristics | Dimensions | 170 mm x 170 mm (6.69" x 6.69") | |||
订货信息
| Part Number | VGA | GbE LAN | COM |
| AIMB-262VG-00A1E | Yes | 1 | 4 |
可选配件
| Part Number | Description |
| 9680004525 | TPM module |
| 1700008809 | Parallel port cable with bracket |
| 1700002204 | Dual port USB cable (27 cm) with bracket |
| AIMB-R430P-03A1E | 2U riser card with 3 PCI slot expansion |

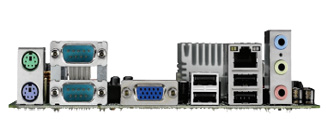

后挡板
配料包
| Description | Quantity |
| AIMB-262 | x 1 |
| SATA HDD cable | x 2 |
| SATA Power cable | x 2 |
| Serial cable | x 2 |
| I/O port bracket | x 1 |
| Startup manual | x 1 |
| Driver CD | x 1 |
