产品介绍
英特尔®酷睿™i7/i5/i3的LGA1150 Mini-ITX规格的VGA/ DP/ HDMI（DP）/ LVDS（EDP），2COM，双网卡，支持PCIe X16
规格
| Processor System | CPU | E3-1268L V3 | i7-4770S | i7-4770TE | i5-4570S | i5-4570TE | i3-4330 | i3-4330TE | Pentium G3420 | Pentium G3320TE |
| Core Number | 4 | 4 | 4 | 4 | 2 | 2 | 2 | 2 | 2 | |
| Max Speed | 2.3GHz | 3.1 GHz | 2.3 GHz | 2.9 GHz | 2.7 GHz | 3.5 GHz | 2.4 GHz | 3.2 GHz | 2.3 GHz | |
| L3 Cache | 8M | 8M | 8M | 6M | 4M | 4M | 4M | 3M | 3M | |
| TDP (W) | 45W | 65W | 45W | 65W | 35W | 54W | 35W | 54W | 35W | |
| Chipset | Q87 | |||||||||
| BIOS | AMI EFI 128 Mbit SPI | |||||||||
| Expansion Slot | PCI | - | ||||||||
| Mini-PCIe | 2, F/S x 1 support mSATA, H/S x 1 with SIM card holder | |||||||||
| PCIe x | 16 (Gen3) 16 GB/s per direction, 1 slot | |||||||||
| Memory | Technology | Dual Channel DDR3/DDR3L @ 1.5V 1333/1600 MHz SDRAM | ||||||||
| Max. Capacity | 16 GB/8 GB per SO-DIMM | |||||||||
| Socket | 2 x 204 PIN DDR3 SO-DIMM (Non-ECC) | |||||||||
| Graphics | Controller | Supports DirectX11.1, OpenGL 4.0 and OpenCL 1.2 | ||||||||
| VRAM | Shared system memory, 2 GB and above, total system memory shared 1 GB maximum video memory | |||||||||
| CRT | Yes, supports max. resolution 1920 x 1200 @ 60 Hz | |||||||||
| LVDS | Supports dual channel 48-bit up to 1920 x 1200 | |||||||||
| HDMI | Yes, supports max. resolution 1920 x 1200 | |||||||||
| eDP | Yes, with internal pin header, supports max. resolution 3840 x 2160 @ 60 Hz | |||||||||
| Display Port 1.2 | Yes, supports max. resolution 3840 x 2160 @ 60 Hz | |||||||||
| Triple Display | VGA+LVDS+HDMI, VGA+LVDS+DP, VGA+DP+HDMI; VGA+DP+DP; VGA+eDP+HDMI, VGA+eDP+DP, LVDS+DP+HDMI, LVDS+DP+DP,eDP+DP+HDMI, eDP+DP+DP | |||||||||
| Ethernet | Interface | 10/100/1000 Mbps | ||||||||
| Controller | GbE LAN1: Intel I217LM; LAN2:Intel I211AT | |||||||||
| Connector | RJ-45 x 2 | |||||||||
| SATA | Max Data Transfer Rate | 600 MB/s (SATA 3.0) | ||||||||
| Channel | 4 | |||||||||
| Rear I/O | CRT | 1 | ||||||||
| HDMI (DP++) | 1, shared with DP by auto detection | |||||||||
| Display Port 1.2 | 1 | |||||||||
| Ethernet | 2 | |||||||||
| USB | 4 (USB 3.0) | |||||||||
| Audio | 3 (Mic-in, Line-out, Line-in) | |||||||||
| Serial | 1 (RS-232, supports 5V/12V) | |||||||||
| eSATA | 1 | |||||||||
| Internal Connector | USB | 6 (USB 2.0) | ||||||||
| LVDS/inverter | 1 | |||||||||
| Serial | 1 (RS-232/422/485) | |||||||||
| IDE | - | |||||||||
| SATA | 4 (SATA 3.0) | |||||||||
| Mini-PCIe | 2 (F/S x 1 & H/S x 1) | |||||||||
| Parallel | - | |||||||||
| IrDA | - | |||||||||
| GPIO | 8-bit | |||||||||
| Watchdog Timer | Output | System reset | ||||||||
| Interval | Programmable 1 ~ 255 sec/min | |||||||||
| Power Requirements | Input power | ATX | ||||||||
| Win Idle 18.725 W (Intel Core i7-4770S 3.1GHz / DDR3 1600MHz 8GB x 2 | ||||||||||
| Environment | Operating | Non-Operating | ||||||||
| Temperature | 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution | -40 ~ 85° C (-40 ~ 185° F) | ||||||||
| Physical Characteristics | Dimensions | 170 mm x 170 mm (6.69" x 6.69") | ||||||||
订货信息
| 产品型号 | 芯片组 | DP | GbE | COM | PCIe x 16 | eSATA |
| AIMB-274G2-00A1E | Q87 | 1 | 2 | 2 | 1 | 1 |
| AIMB-274L-00A1E | Q87 | 0 | 1 | 2 | 1 | 0 |
操作系统
| 产品型号 | 料号 | 描述 |
| WES7 | 2070012179 | WES7E AIMB-274 x86 V5.1.6 Eng/Jpn/Cht/Chn |
| WES8 | 2070012425 | WES8E AIMB-274 x86 V6.0.0 Eng |
| iManager | Software APIs for hardware monitoring ,smartfan, watchdog, GPIO, brightness control |

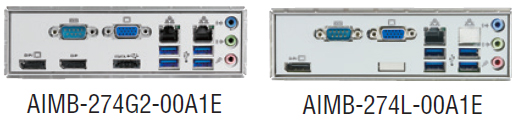

主板背板
可选配件料号
| Part Number | Description |
| 1703100121 | USB cable with two ports, 12 cm |
| 1703100261 | USB cable with two ports, 26 cm |
| 1703100350 | USB cable with two ports, 34.5 cm |
| 1703060191 | KB/MS cable 1*6P-2.0/M-DIN 6P(F)*2, 19cm |
| 1960053207N001 | LGA1150 CPU cooler for CPU TDP 65W,92.9 (W) x 92.9 (L) x 46 (H) mm |
| 1960060732N001 | LGA1150 CPU cooler for CPU TDP 45W,80 (W) x 80 (L) x 32.2 (H) mm |
| Note: Purchasing AIMB-274's proprietary CPU cooler from Advantech is a must, other brand's CPU cooler are NOT compatible with AIMB-274. | |
| AIMB-B2000-15ZE | Mini-ITX chassis with 150W ATX power supply |
配料包
| Part Number | Description | Quantity |
| 1700003194 | SATA HDD cable | 2 for G2 sku, 0 for L sku |
| 1700018785 | SATA power cable | 2 |
| 1700001788 | Serial port cable, 30cm | 1 |
| 1960060539T000 | I/O port bracket | 1 for G2 sku |
| 1960060539T100 | I/O port bracket | 1 for L sku |
| 2006027410 | Startup manual | 1 |
| 2066027400 | Driver CD | 1 |
