产品介绍
支持 Intel® Core™ i7/i5/i3处理器，搭载H61芯片组 2个DIMM插槽，支持GB DDR3 1066/1333 MHz SDRAM 支持VGA, DVI, LVDS的双显示以及双GbE LAN 支持10个COM, 10个USB 2.0, TPM 1.2（可选）支持嵌入式软件API和实用工具
规格
| Processor System | CPU | Intel Core | Intel Core | Intel Core | Intel Core | Intel Core | Intel Core | Pentium | Celeron |
| i7-3770 | i5-3550S | i3-3220 | i7-2600 | i5-2400 | i3-2120 | G850 | G540 | ||
| Core Number | 4 | 4 | 2 | 4 | 4 | 2 | 2 | 2 | |
| Max. Speed | 3.4 GHz | 3.0 GHz | 3.3 GHz | 3.4 GHz | 3.1 GHz | 3.3 GHz | 2.9 GHz | 2.50 GHz | |
| Integrated Graphics | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| L3 Cache | 8 MB | 6 MB | 3 MB | 8 MB | 6 MB | 3 MB | 3 MB | 2 MB | |
| Chipset | H61 | ||||||||
| BIOS | AMI EFI 64 Mbit SPI | ||||||||
| Expansion Slot | PCI | 32-bit/33 MHz, 2 slots | |||||||
| PCIe x 1 (Gen2) | 500MB/s per direction, 1 slot | ||||||||
| PCIe x16 (Gen3) | 16 GB/s per direction, 1 slot | ||||||||
| Memory | Technology | Dual Channel DDR3 1600/1333 MHz SDRAM | |||||||
| Max. Capacity | 16 GB | ||||||||
| Socket | 2 x 240-pin DIMM | ||||||||
| Graphics | Controller | Intel HD Graphics | |||||||
| VRAM | 1GB maximum shared memory with 2GB and above system memory installed | ||||||||
| LVDS | Support 18/24bit, 36/48bit single/dual channel | ||||||||
| CRT | Yes, supports max. resolution 2048 x 1536 | ||||||||
| DVI | 1 (Optional) | ||||||||
| Dual Display | CRT1+LVDS, CRT1+DVI; CRT1+CRT2 | ||||||||
| Ethernet | Interface | 10/100/1000 Mbps | |||||||
| Controller | GbE LAN: Realtek 8111E | ||||||||
| Connector | RJ45 X 2 | ||||||||
| SATA | Max Data Transfer Rate | 300 MB/s (SATA 2.0) | |||||||
| Channel | 4 | ||||||||
| Rear I/O | CRT | 2 | |||||||
| DVI | - | ||||||||
| USB | 4 | ||||||||
| Parallel | 1 | ||||||||
| Audio | 2 (Mic-in, Line-out) | ||||||||
| Serial | - | ||||||||
| Ethernet | 2 | ||||||||
| PS/2 | 2 (1 x keyboard and 1 x mouse) | ||||||||
| Internal Connector | USB | 6 (USB 2.0 compliant) | |||||||
| Serial | 10 (8 x RS-232. COM 3/7 supports RS-232/422/485, supports RS-485 auto flow control. And COM1/2 with selectable 5V/12V) | ||||||||
| IDE | - | ||||||||
| LVDS & Inverter | 1 | ||||||||
| DVI | 1 (Optional) | ||||||||
| IrDA | - | ||||||||
| SATA | 4 x 300 MB/s (SATA 2.0) | ||||||||
| GPIO | 8-bit GPIO | ||||||||
| Watchdog Timer | Output | System reset | |||||||
| Interval | Programmable 1 ~ 255 sec/min | ||||||||
| Power Requirements | Intel Core i7-2600 3.4GHz, 4GB DDR3 1333MHz x 2pcs | ||||||||
| Power On | 5 V | +3.3 V | +12 V | -12 V | 5 VSB | ||||
| 2.25 A | 1.05 A | 6.66 A | 0.13 A | 0.49 A | |||||
| Environment | Operating | Non-Operating | |||||||
| Temperature | 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution | -40 ~ 85° C (-40 ~ 185° F) | |||||||
| Physical Characteristics | Dimensions | 244 mm x 244 mm (9.6" x 9.6") | |||||||
订货信息
| Part Number | PCH | Memory | CRT | DVI | LVDS | USB 2.0 | COM | TPM | LAN |
PCIe x 16 slot |
PCIe x 1 slot |
PCI slot |
AMP |
| AIMB-501G2-KSA1E | H61 | Non ECC | 2 | (1)* | 1 | 10 | 10 | (1) | 2 | 1 | 1 | 2 | Yes |
| AIMB-501L-KSA1E | H61 | Non ECC | 1 | 0 | 0 | 10 | 2 | (1) | 1 | 1 | 1 | 0 | No |
可选配件
| Part Number | Description |
| 1700002204 | USB cable with dual ports, 27 cm |
| 1700008822 | DVI cable |
| 1960047669N001 | LGA1156 CPU cooler for 4U and wallmount chassis |
| 1700018699 | KBMS cable 1*6P-2.5/DIN-6P(F)*2, 25 cm |
| 1700000447 | 1-to-4 serial ports cable kit, 45cm |
| 1701400181 | 1-to-4 serial ports cable kit, 18cm |
| Note: Purchasing AIMB-501's proprietary CPU cooler from Advantech is a must; other brands of CPU coolers are NOT compatible with AIMB-501 | |
| AIMB-RP10P-01A1E | 1U riser card with 1 PCI expansion |
| AIMB-RP30P-03A1E | 2U riser card with 3 PCI expansion |
| AIMB-RP3PF-21A1E | 2U riser card with 1 PCIe x16 and 2 PCI expansion |
Embedded OS/API
| OS/API | Part No | Description |
| Win XPe | XPe WES 2009 | |
| Software API | SUSI V3.0 SW API for AIMB-501KS XP |

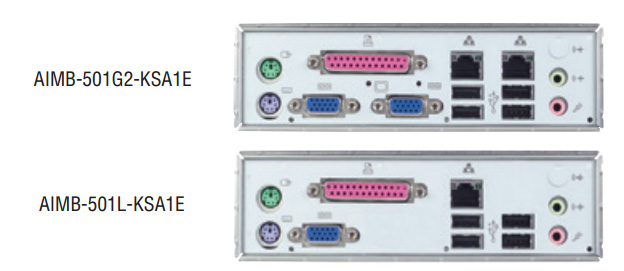

后挡板
配料包
| Description | Quantity |
| Serial ATA HDD data cable | 2 |
| Com port cable kit | 3 |
| I/O port bracket | 1 |
| Startup manual | 1 |
| Driver CD | 1 |
