产品介绍
ATM,VTM,BST,SST 自助终端专用主板, H81/B85芯片组, 支持Intel®第四代Core™ i7/i5/i3 LGA1150 Haswell处理器，带CRT/DVI/LVDS显示输出接口，10个COM输出接口，4个USB3.0接口，7个USB2.0接口，双千兆网口
规格
|
Processor System |
CPU | i7-4770S | i5-4570S | i3-4330 | Pentium G3320TE |
| Core Number | 4 | 4 | 2 | 2 | |
| Max. Speed | 3.1 GHz | 2.9 GHz | 3.5 GHz | 2.3 GHz | |
| L3 Cache | 8M | 6M | 4M | 3M | |
| TDP (W) | 65W | 65W | 54W | 35W | |
| Chipset | H81 | ||||
| BIOS | AMI EFI 64 Mbit SPI | ||||
| Expansion Slot | PCI | 32-bit/33 MHz, 1 slot | |||
| PCIe x 1 (Gen2) | 500 MB/s per direction, 2 slot | ||||
| PCIe x16 (Gen3) | 16 GB/s per direction, 1 slot | ||||
| Full-size Mini-PCIe | 1/0, F/S support mSATA with SIM card holder | ||||
| Memory | Technology | Dual Channel DDR3/DDR3L @1.5V 1333/1600 MHz SDRAM | |||
| Max. Capacity | 16 GB/8 GB per DIMM | ||||
| Socket | 2 x 240-pin DIMM (Non-ECC) | ||||
| Graphics | Controller | Intel HD Graphics | |||
| LVDS | Supports dual channel 48 bit and up to 1920 x 1200 | ||||
| CRT | Yes, supports max. resolution 1920 x 1200 | ||||
| DP | Up to 3840 x 2160 resolution | ||||
| DVI | Up to 1920 x 1200 @ 60Hz refresh rate | ||||
| Dual | Display DP+DVI, VGA+DP, VGA+DVI | ||||
| Ethernet | Interface | 10/100/1000 Mbps | |||
| Controller | GbE LAN1:Realtek RTL8111E | ||||
| GbE LAN2:Realtek RTL8111E | |||||
| Connector | RJ-45 x 2 | ||||
| SATA | Max Data Transfer Rate | 600 / 300 MB/s (SATA 3.0 / SATA 2.0) | |||
| Channel | 2 / 1 | ||||
| Rear I/O | CRT | 1 | |||
| DVI-D | 1 | ||||
| Ethernet | 2 / 1 | ||||
| USB | 4 (G2/L: USB 3.0 x 2, USB 2.0 x 2) | ||||
| Display port | 1 (G2) | ||||
| Audio | 2 (Mic-In, Line-out) | ||||
| Serial | 1 (RS-232, COM1 support 5V/12V ) | ||||
| PS/2 | 2 (1 x keyboard and 1 x mouse) | ||||
|
Internal Connector |
USB | 5 (USB 2.0) | |||
| Serial | 9 (7 x RS-232, 2 x RS-232/422/485; COM 3 and COM 7 support RS-232/422/485 auto flow control; COM 2 support 5V/12V by jumper selection) | ||||
| IDE | - | ||||
| SATA | 2 x 600 MB/s (SATA 3.0), 1 x 300 MB/s (SATA 2.0) | ||||
| LVDS & Inverter | 1 | ||||
| DVI | - | ||||
| IrDA | - | ||||
| GPIO | 8-bit GPIO | ||||
| LPT | 1 (G2) | ||||
| Watchdog Timer | Output | System reset | |||
| Interval | Programmable 1 ~ 255 sec/min | ||||
|
Power Requirements |
Intel® Core™ i7-4770S CPU @ 3.10GHz + DDR3 8G X2 1600 + SATA H.D.D | ||||
| Power On | 5V +3.3V | 12V -12V | 5VSB | ||
| 1.41A 1.14A | 4.8A 0.13A | 0.42A | |||
| Environment | Operating | Non-Operating | |||
| Temperature | 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution | -40 ~ 85° C (-40 ~ 185° F) | |||
|
Physical Characteristics |
Dimensions | 244 mm x 244 mm (9.6" x 9.6") | |||
订货信息
| Part Number | PCH | Memory | VGA |
| AIMB-503G2-00A1E | H81 Non | ECC | 1 |
| AIMB-503L-00A1E | H81 Non | ECC | 1 |
| *() BOM options available on MP version. | |||
| Riser Card | |||
| Part Number | Description | ||
| AIMB-RP10P-01A1E | 1U riser card with 1 PCI expansion | ||
| AIMB-RP30P-03A1E | 2U riser card with 3 PCI expansion | ||
| AIMB-RP3PF-21A1E | 2U riser card with 1 PCIe x16 and 2 PCI expansion | ||
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIe x16 expansion | ||
| Packing List | |||
| Part Number | Description | ||
| 1700003194 | Serial ATA HDD data cable | ||
| 17AD14GS1400013V04 | 4 in 1 COM cable 500mm (IDE 40-pin 2.0mm) | ||
| 17AD14GS0000083V04 | DB 9P/M to IDC 10P cable 600mm | ||
|
1960056089T010(G2) 19Z0000568T000(L) |
I/O port bracket | ||
| 2006050300 | Startup manual | ||
| 2066050300 | Driver CD | ||
| Optional Accessories | |||
| Part Number | Description | ||
| 1700002204 | USB cable with dual ports, 27 cm | ||
| 1960053207N001 | LGA1150 CPU cooler for CPU TDP 65W,92.9 (W) x 92.9 (L) x 46 (H) mm | ||
| 1960060732N001 | LGA1150 CPU cooler for CPU TDP 45W,80 (W) x 80 (L) x 32.2 (H) mm | ||
| 1700000447 | 1-to-4 serial ports cable kit, 45cm | ||
| 1701400181 | 1-to-4 serial ports cable kit, 18cm | ||
|
Note: Purchasing AIMB-503's proprietary CPU cooler from Advantech is a must; other brands of CPU coolers are NOT compatible with AIMB-503. |
|||
| Embedded OS/API | |||
| OS/API | Part No | Description | |
| WES7 | 2070012753 | Image WES7E AIMB-503 x32 V5.1.6 ENG | |

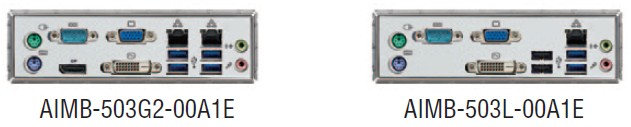

后挡板
